UL Class CC Fuses

UL Class CC Fuses

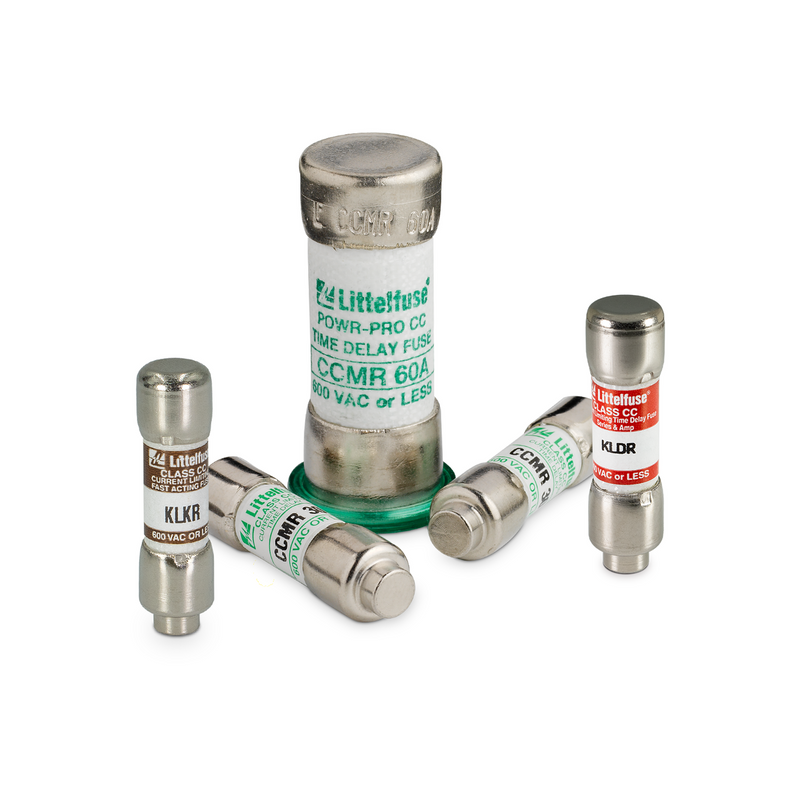

Littelfuse offers three different series of Class CC dual-element fuses that are specifically designed to protect different types of components. The CCMR time-delay fuses offer superior protection of motor circuits up to 40 hp. The KLDR time-delay fuses are designed to withstand the high magnetizing in-rush of transformers. The KLKR fast-acting fuses are used for protection of equipment containing solid-state devices or other components requiring fast response on overloads. The CCMR series features POWR-PRO® technology with high-interrupting capability up to 300 kA (self-certified).

Product Highlights

Features

  • Time-delay and fast-acting versions
  • Available with ampere ratings from 0.1 A to 60 A
  • Current-limiting
  • Interrupting rating of 200 kA @ 600 V ac

Benefits

  • Reduces damage caused by heating and magnetic effects of short-circuit currents
  • Superior protection of components sensitive to short-time overloads
  • All-purpose, space-saving branch circuit fuse

Common Applications

  • Motor and motor branch circuit protection
  • Contactor protection
  • Heating and general industrial protection

Available Products

Product 🔼 Description 🔼 Price 🔼 Amperage 🔼 Actions
CCMR.250 0.25A 600V T/D Non-ID Class CC Fuse $20.87 0.25A View
CCMR.500 0.5A 600V T/D Non-ID Class CC Fuse $20.87 0.5A View
CCMR.600 0.6A 600V T/D Non-ID Class CC Fuse $20.87 0.6A View
CCMR.800 0.8A 600V T/D Non-ID Class CC Fuse $20.87 0.8A View
CCMR001 1A 600V T/D Non-ID Class CC Fuse $20.87 1A View
CCMR002 2A 600V T/D Non-ID Class CC Fuse $20.87 2A View
CCMR003 3A 600V T/D Non-ID Class CC Fuse $20.87 3A View
CCMR004 4A 600V T/D Non-ID Class CC Fuse $20.87 4A View
CCMR005 5A 600V T/D Non-ID Class CC Fuse $20.87 5A View
CCMR006 6A 600V T/D Non-ID Class CC Fuse $20.87 6A View
CCMR007 7A 600V T/D Non-ID Class CC Fuse $20.87 7A View
CCMR008 8A 600V T/D Non-ID Class CC Fuse $20.87 8A View
CCMR009 9A 600V T/D Non-ID Class CC Fuse $20.87 9A View
CCMR01.5 1.5A 600V T/D Non-ID Class CC Fuse $20.87 1.5A View
CCMR01.6 1.6A 600V T/D Non-ID Class CC Fuse $20.87 1.6A View
CCMR01.8 1.8A 600V T/D Non-ID Class CC Fuse $20.87 1.8A View
CCMR010 10A 600V T/D Non-ID Class CC Fuse $20.87 10A View
CCMR012 12A 600V T/D Non-ID Class CC Fuse $20.87 12A View
CCMR015 15A 600V T/D Non-ID Class CC Fuse $20.87 15A View
CCMR02.5 2.5A 600V T/D Non-ID Class CC Fuse $20.87 2.5A View
CCMR020 20A 600V T/D Non-ID Class CC Fuse $20.87 20A View
CCMR025 25A 600V T/D Non-ID Class CC Fuse $20.87 25A View
CCMR03.2 3.2A 600V T/D Non-ID Class CC Fuse $20.87 3.2A View
CCMR03.5 3.5A 600V T/D Non-ID Class CC Fuse $20.87 3.5A View
CCMR030 30A 600V T/D Non-ID Class CC Fuse $20.87 30A View
CCMR07.5 7.5A 600V T/D Non-ID Class CC Fuse $20.87 7.5A View
CCMR1.25 1.25A 600V T/D Non-ID Class CC Fuse $20.87 1.25A View
CCMR17.5 17.5A 600V T/D Non-ID Class CC Fuse $20.87 17.5A View
CCMR6.25 6.25A 600V T/D Non-ID Class CC Fuse $20.87 6.25A View
KLDR.800 .8A 600V T/D Non-ID Class CC Fuse $23.03 .8A View
KLDR6.25 6.25A 600V T/D Non-ID Class CC Fuse $23.03 6.25A View
KLDR030 30A 600V T/D Non-ID Class CC Fuse $23.03 30A View
KLDR03.5 3.5A 600V T/D Non-ID Class CC Fuse $23.03 3.5A View
KLDR03.2 3.2A 600V T/D Non-ID Class CC Fuse $23.03 3.2A View
KLDR025 25A 600V T/D Non-ID Class CC Fuse $23.03 25A View
KLDR020 20A 600V T/D Non-ID Class CC Fuse $23.03 20A View
KLDR02.5 2.5A 600V T/D Non-ID Class CC Fuse $23.03 2.5A View
KLDR015 15A 600V T/D Non-ID Class CC Fuse $23.03 15A View
KLDR012 12A 600V T/D Non-ID Class CC Fuse $23.03 12A View
KLDR010 10A 600V T/D Non-ID Class CC Fuse $23.03 10A View
KLDR01.5 1.5A 600V T/D Non-ID Class CC Fuse $23.03 1.5A View
KLDR008 8A 600V T/D Non-ID Class CC Fuse $23.03 8A View
KLDR007 7A 600V T/D Non-ID Class CC Fuse $23.03 7A View
KLDR005 5A 600V T/D Non-ID Class CC Fuse $23.03 5A View
KLDR006 6A 600V T/D Non-ID Class CC Fuse $23.03 6A View
KLDR004 4A 600V T/D Non-ID Class CC Fuse $23.03 4A View
KLDR003 3A 600V T/D Non-ID Class CC Fuse $23.03 3A View
KLDR002 2A 600V T/D Non-ID Class CC Fuse $23.03 2A View
KLDR001 1A 600V T/D Non-ID Class CC Fuse $23.03 1A View
KLDR.600 .6A 600V T/D Non-ID Class CC Fuse $23.03 .6A View
KLKR030 30A 600V Fast Non-ID Class CC Fuse $20.13 30A View
KLKR025 25A 600V Fast Non-ID Class CC Fuse $20.13 25A View
KLKR020 20A 600V Fast Non-ID Class CC Fuse $20.13 20A View
KLKR015 15A 600V Fast Non-ID Class CC Fuse $20.13 15A View
KLKR010 10A 600V Fast Non-ID Class CC Fuse $20.13 10A View
KLKR01.5 1.5A 600V Fast Non-ID Class CC Fuse $20.13 1.5A View
KLKR007 7A 600V Fast Non-ID Class CC Fuse $20.13 7A View
KLKR008 8A 600V Fast Non-ID Class CC Fuse $20.13 8A View
KLKR006 6A 600V Fast Non-ID Class CC Fuse $20.13 6A View
KLKR005 5A 600V Fast Non-ID Class CC Fuse $20.13 5A View
KLKR004 4A 600V Fast Non-ID Class CC Fuse $20.13 4A View
KLKR003 3A 600V Fast Non-ID Class CC Fuse $20.13 3A View
KLKR002 2A 600V Fast Non-ID Class CC Fuse $20.13 2A View
KLKR001 1A 600V Fast Non-ID Class CC Fuse $20.13 1A View

Can't find what you're looking for?

Request a quote on additional Littelfuse parts below
