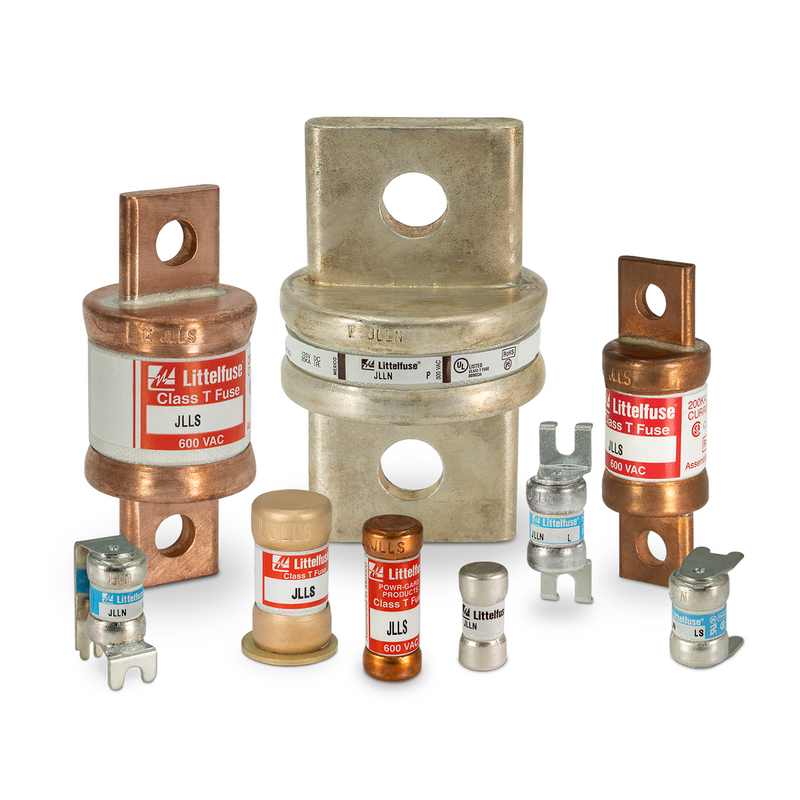

Class T Fuses

Class T Fuses

At less than one-third the size of similarly performing Class R fuses, current-limiting POWR-GARD® Class T fuses offer space-saving overcurrent and short-circuit protection solutions in applications requiring fuses with current ratings higher than 30 A. Be aware, however, that Class T fuses may provide protection only against short circuits when used with circuits carrying inductive loads. For applications where fuse size is not a principal concern, Littelfuse recommends JTD_ID series Class J fuses or FLSR_ID series Class RK5 fuses.

Product Highlights

Features

  • Fast-acting
  • Current ratings from 1 A to 1.2 kA
  • Interrupting ratings up to 200 kA at 1.2 V ac and 200 kA at 200 V dc
  • RoHS compliant

Benefits

  • Work in ac and dc systems
  • NEC-compliant overcurrent and short-circuit protection solution when used with circuits carrying noninductive loads
  • Current-limiting performance reduces magnetic effects and heat damage from short circuits
  • Use with input or output circuits for surge-sensitive components can prevent the opening of semiconductor fuses for those components
  • Blade, cartridge, and surface mount configurations available

Common Applications

  • Ac mains
  • Electricity meters
  • Inverters
  • Rectifiers
  • Uninterruptible power supplies
  • Variable speed drives

Available Products

Product 🔼 Description 🔼 Price 🔼 Amperage 🔼 Actions
JLLS200 200A 600V Fast Non-ID Class T Fuse $71.29 200A View
JLLS060 60A 600V Fast Non-ID Class T Fuse $30.28 60A View
JLLS040 40A 600V Fast Non-ID Class T Fuse $36.57 40A View
JLLS030 30A 600V Fast Non-ID Class T Fuse $20.27 30A View
JLLS020 20A 600V Fast Non-ID Class T Fuse $24.02 20A View
JLLS010 10A 600V Fast Non-ID Class T Fuse $22.50 10A View

Can't find what you're looking for?

Request a quote on additional Littelfuse parts below
