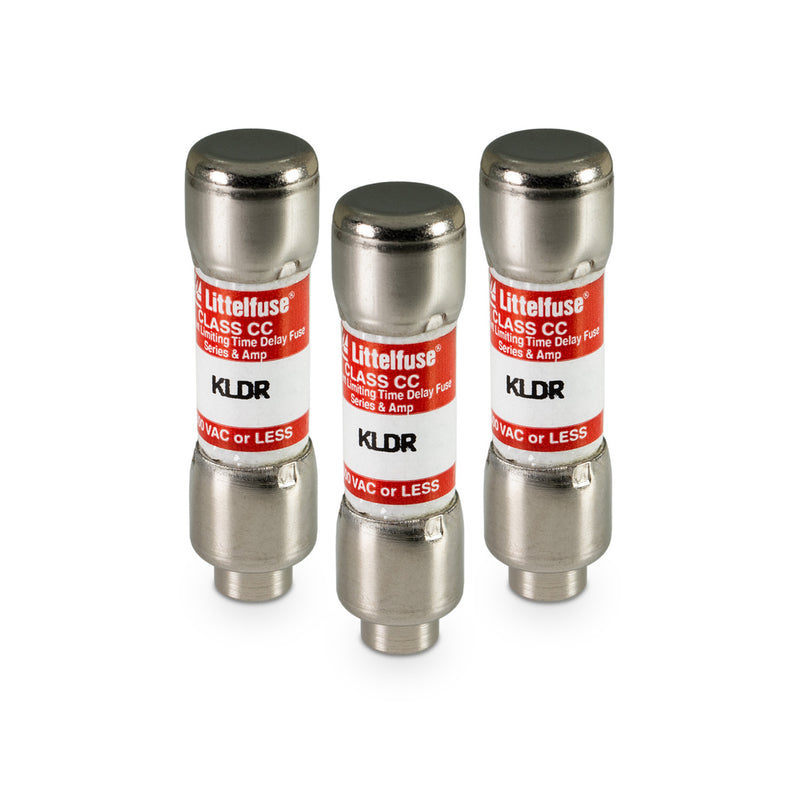

Littelfuse KLDR Fuses Provide Superior Transformer Protection

KLDR Series time-delay fuses are designed to protect control transformers, solenoids, and similar inductive components with high-magnetizing currents during the first half-cycle. These small-sized fuses provide excellent protection of motor branch circuits containing IEC or NEMA-rated motor controllers or contactors. The KLDR Series fuses can be sized in accordance with the latest revisions of UL 508 (Industrial Control) and UL 845 (Motor Control Centers).

📄 View Datasheet

Product Highlights

Features

  • Short-circuit protection
  • Rejection capability
  • Time-delay

Benefits

  • Reduces damage caused by heating and magnetic effects of short-circuit currents
  • Improves safety with faster response times to fault currents
  • Prevents use of fuses with lower interrupting ratings or voltage when used with corresponding fuse holders
  • Allows for a temporary current surge for a short period of time without blowing

Common Applications

  • Control circuits
  • General loads
  • Branch circuit protection
  • Solid-state components

Available Products

Product 🔼 Description 🔼 Price 🔼 Amperage 🔼 Actions
KLDR.800 .8A 600V T/D Non-ID Class CC Fuse $23.03 .8A View
KLDR6.25 6.25A 600V T/D Non-ID Class CC Fuse $23.03 6.25A View
KLDR030 30A 600V T/D Non-ID Class CC Fuse $23.03 30A View
KLDR03.5 3.5A 600V T/D Non-ID Class CC Fuse $23.03 3.5A View
KLDR03.2 3.2A 600V T/D Non-ID Class CC Fuse $23.03 3.2A View
KLDR025 25A 600V T/D Non-ID Class CC Fuse $23.03 25A View
KLDR020 20A 600V T/D Non-ID Class CC Fuse $23.03 20A View
KLDR02.5 2.5A 600V T/D Non-ID Class CC Fuse $23.03 2.5A View
KLDR015 15A 600V T/D Non-ID Class CC Fuse $23.03 15A View
KLDR012 12A 600V T/D Non-ID Class CC Fuse $23.03 12A View
KLDR010 10A 600V T/D Non-ID Class CC Fuse $23.03 10A View
KLDR01.5 1.5A 600V T/D Non-ID Class CC Fuse $23.03 1.5A View
KLDR008 8A 600V T/D Non-ID Class CC Fuse $23.03 8A View
KLDR007 7A 600V T/D Non-ID Class CC Fuse $23.03 7A View
KLDR005 5A 600V T/D Non-ID Class CC Fuse $23.03 5A View
KLDR006 6A 600V T/D Non-ID Class CC Fuse $23.03 6A View
KLDR004 4A 600V T/D Non-ID Class CC Fuse $23.03 4A View
KLDR003 3A 600V T/D Non-ID Class CC Fuse $23.03 3A View
KLDR002 2A 600V T/D Non-ID Class CC Fuse $23.03 2A View
KLDR001 1A 600V T/D Non-ID Class CC Fuse $23.03 1A View
KLDR.600 .6A 600V T/D Non-ID Class CC Fuse $23.03 .6A View
