Class J Fuses

Class J Fuses

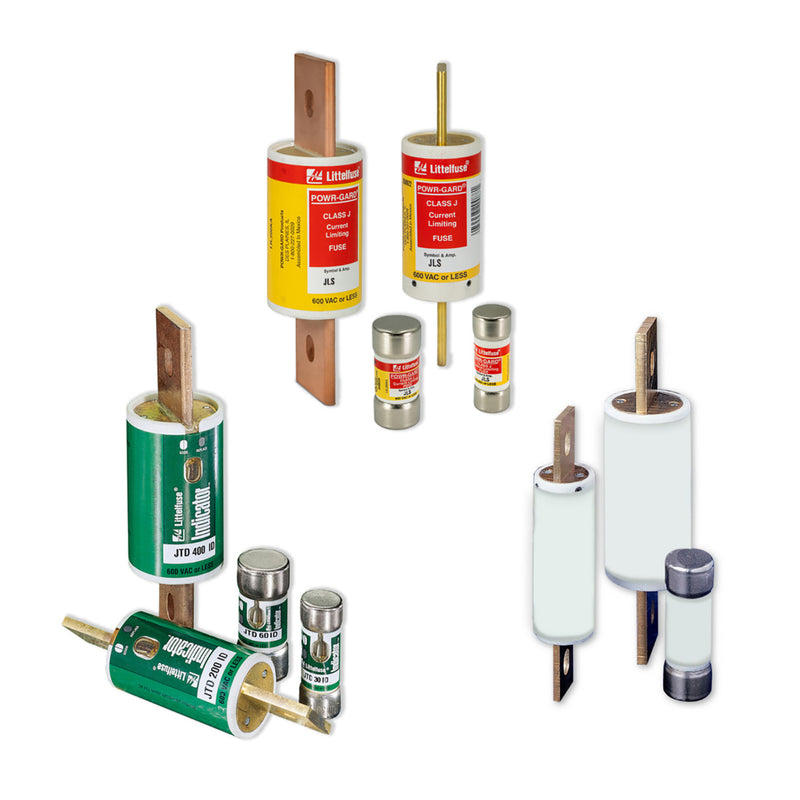

Littelfuse offers three types of current-limiting Class J fuses to meet the need for circuit protection in industrial and electrical power generation and transmission applications. Fast-acting JLS series fuses provide space-saving overload and short-circuit protection in industrial and power conversion applications. JTD time-delay fuses employ POWR-PRO® technology to ensure very high interrupting ratings and are specifically designed for use where space is limited. JTD_ID fuses share the same features and benefits of JTD series fuses but also feature blown-fuse indicators.

Product Highlights

Features

  • Current ratings from 800 mA to 600 A
  • Interrupting ratings of 200 kA at 600 V ac for fast-acting fuses and 300 kA at 600 V ac for time-delay fuses

Benefits

  • Cartridge and blade configurations available
  • Compact design

Common Applications

  • General circuits, especially those carrying resistive loads
  • Molded case circuit breaker panels
  • Motor control centers
  • Rectifiers
  • Transformers
  • Variable speed drives

Available Products

Product 🔼 Description 🔼 Price 🔼 Amperage 🔼 Actions
JTD400ID 400A 600V T/D ID Class J Fuse $389.16 400A View
JTD350ID 350A 600V T/D ID Class J Fuse $389.16 350A View
JTD300ID 300A 600V T/D ID Class J Fuse $389.16 300A View
JTD250ID 250A 600V T/D ID Class J Fuse $381.74 250A View
JTD225ID 225A 600V T/D ID Class J Fuse $381.74 225A View
JTD200ID 200A 600V T/D ID Class J Fuse $192.08 200A View
JTD175ID 175A 600V T/D ID Class J Fuse $199.32 175A View
JTD17.5ID 17.5A 600V T/D ID Class J Fuse $28.28 17.5A View
JTD150ID 150A 600V T/D ID Class J Fuse $199.32 150A View
JTD125ID 125A 600V T/D ID Class J Fuse $192.08 125A View
JTD100ID 100A 600V T/D ID Class J Fuse $100.59 100A View
JTD090ID 90A 600V T/D ID Class J Fuse $100.59 90A View
JTD080ID 80A 600V T/D ID Class J Fuse $100.59 80A View
JTD060ID 60A 600V T/D ID Class J Fuse $46.89 60A View
JTD070ID 70A 600V T/D ID Class J Fuse $100.59 70A View
JTD050ID 50A 600V T/D ID Class J Fuse $45.19 50A View
JTD045ID 45A 600V T/D ID Class J Fuse $45.19 45A View
JTD040ID 40A 600V T/D ID Class J Fuse $45.19 40A View
JTD035ID 35A 600V T/D ID Class J Fuse $45.19 35A View
JTD030ID 30A 600V T/D ID Class J Fuse $28.28 30A View
JTD025ID 25A 600V T/D ID Class J Fuse $28.28 25A View
JTD020ID 20A 600V T/D ID Class J Fuse $28.28 20A View
JTD015ID 15A 600V T/D ID Class J Fuse $28.28 15A View
JTD012ID 12A 600V T/D ID Class J Fuse $29.57 12A View
JTD010ID 10A 600V T/D ID Class J Fuse $28.28 10A View
JTD008ID 8A 600V T/D ID Class J Fuse $29.57 8A View
JTD007ID 7A 600V T/D ID Class J Fuse $29.57 7A View
JTD006ID 6A 600V T/D ID Class J Fuse $28.28 6A View
JTD005ID 5A 600V T/D ID Class J Fuse $28.28 5A View
JTD004ID 4A 600V T/D ID Class J Fuse $28.28 4A View
JTD003ID 3A 600V T/D ID Class J Fuse $28.28 3A View
JTD001ID 1A 600V T/D ID Class J Fuse $28.28 1A View
